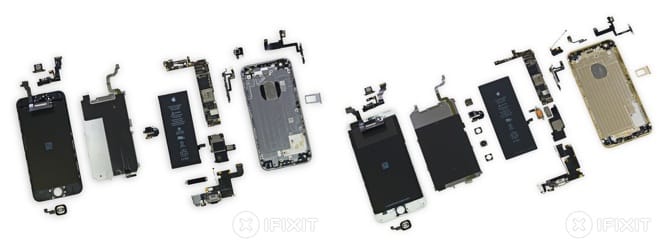

As expected, iFixit has posted its complete teardown of the iPhone 6 and iPhone 6 Plus, confirming some specs while revealing a few new insights. The iPhone 6 has the anticipated prominently visible 0.6mm bump along the top of the device, a compromise required by the improved optics in the new model. Both models include virtually identical camera hardware—an 8 MP ƒ/2.2 aperture rear-facing camera, with the only difference being the optical image stabilization in the 6 Plus, where the lens element is contained in a tiny metal cage with electromagnetic coils surrounding the sensor on the right.
The iPhone 6 battery was identified as an 1810 mAh, 3.82 V Lithium-ion Polymer battery with a 6.91 Wh rating, although the rating on the flip side of the battery is listed as 7.01 Wh; the battery weighs in at 28 grams. By comparison, the iPhone 6 Plus packs an 11.1 Wh, 2915 MAh battery.
In terms of chip sets, both models are basically identical, containing an Apple A8 CPU with 1 GB RAM, and a collection of radio and controller chips from Qualcomm, Broadcom, RF Micro Devices, SkyWorks, NXP, and Texas Instruments.
Notably, both models contain NXP 65V10 NFC chips, as reported prior to the launch, as well as an AMS chip for the NFC front-end. The iPhone 6 Plus also appears to include an extra EDGE power amplifier module, perhaps due to the need to improve reception with the larger design; two plastic antenna stripes are also featured on the outer case to help with wireless reception. The audio codec in both devices is a Cirrus Logic 338S1201, and notably the headphone jack and Lightning connector now share a single assembly, requiring the entire part to be replaced should a problem develop with one or the other.
